JIQUN

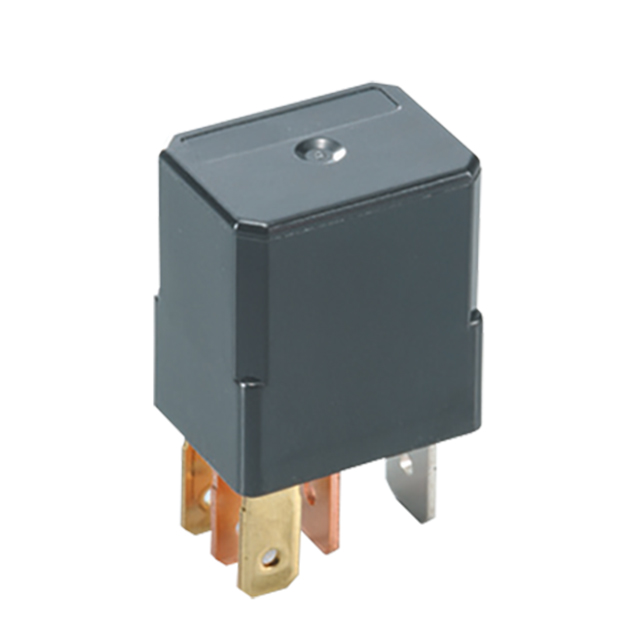

| Model： | CM1F-D-24V |
|---|---|
| Product Category： | Automotive Relays |
| Manufacturer： | Panasonic Electric Works |
| Description： | RELAY AUTOMOTIV |
| Encapsulation： | - |
| Package： | Tube |
| Quantity： | 3000 |
| RoHS Status： | |
|
Obtain Quotation
|
| TYPE | DESCRIPTION |
| Mfr | Panasonic Electric Works |
| Series | CM |
| Package | Tube |
| Product Status | OBSOLETE |
| Features | Diode, Sealed - Flux Protection |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Plug In |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 28VDC - Nom |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 14 VDC |
| Operate Time | 10 ms |
| Release Time | 15 ms |
| Coil Power | 1.8W |
| Coil Resistance | 320 Ohms |
